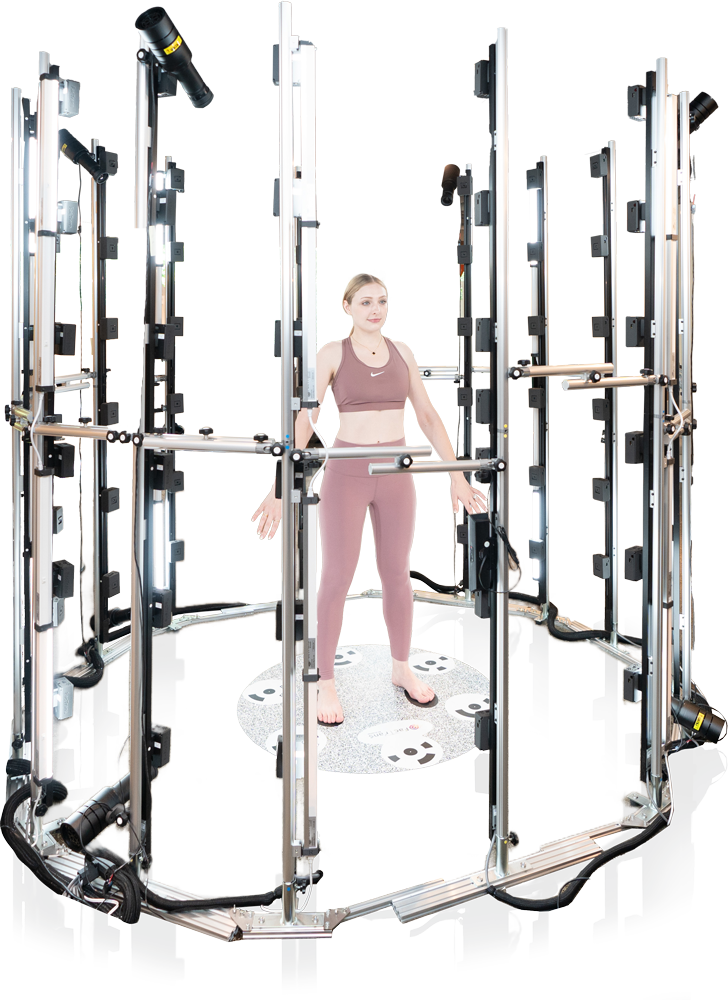

3D body scanner that enables generating high-resolution 3D avatars
iBODY X
iBODY X
3D body scanner that enables generating high-resolution 3D avatars
iBODY X
With 96 cameras, the entire body is scanned instantly, and a high-resolution 3D avatar is generated in approximately 5 minutes.
The generated 3D data is compatible with various platforms and can be utilized for a wide range of applications.
With 96 cameras, the entire body is scanned instantly, and a high-resolution 3D avatar is generated in approximately 5 minutes.
The generated 3D data is compatible with various platforms and can be utilized for a wide range of applications.
With 96 cameras, the entire body is scanned instantly, and a high-resolution 3D avatar is generated in approximately 5 minutes.
The generated 3D data is compatible with various platforms and can be utilized for a wide range of applications.
We exhibited at NRF2025
BEEATS exhibited at the “NRF 2025 Innovators Showcase” during the “NRF 2025: Retail’s Big Show”, one of the world’s largest retail industry exhibitions hosted by the National Retail Federation, held at the Jacob K. Javits Convention Center in New York, USA.
High-Resolution Full-Color 3D Body Data
96 cameras generate photogrammetric 3D avatars.
Dynamic Scanned Data
The captured body data enables the 3d avatar to be manipulated for free movement, applicable in gaming, animation, fashion, and more.
Affordable Photogrammetry Scanner
With a 96-camera system, the scanner achieves precise data acquisition, realizing high performance at low costs.
It delivers industry-leading accuracy while keeping installation and operational costs manageable.
96 Cameras
High performance
Low cost
New Customer Experiences Through High-Resolution 3D avatar
For Games and the Metaverse
Instead of a cartoon-like avatar, a realistic 3D avatar, resembling your own self, can exist in the metaverse and gaming spaces.
Sustainability in the Fashion Industry
By producing garments tailored to users, the technology reduces fashion waste. It promotes ultimate traceability and sustainable manufacturing, accelerating sustainability efforts in the fashion industry through the use of body scanners.
The measured 3D data is compatible with a variety of platforms
It supports a variety of 3D data formats, including glb format. It can be used on a wide range of platforms.
Specification
| Product Overview | Product name | iBODY X |
|---|---|---|
| Main Applications | 3D avatar is generated from high-definition photogrammetry data which can be utilized for animation, metaverse, apparel EC, etc. | |
| Technical Specifications | Dimensions and weight |
Minimum: W84.94 x D84.94 x H86.37 ( inches ) / W2,157 × D2,157 × H2,194 (mm) Maximum: W132.48 x D132.48 x H86.37 ( inches ) / W3,364 × D3,364 × H2,194 (mm) Weight: 189.59 lbs / 86 kg (chassis only, without decorations) |
| Power supply |
AC100-200V, less than 1000W Voltage selection required between 100V and 200V systems via voltage selector. |
|
| Body Measurement Acccuracy |
Reference value: ±0.04 inch （ ±１ mm ） Subject to variation based on conditions. |
|
| Resolution |
16Mpix Texture Resolution: 2K (Preview Mode), 8K (Normal Mode, High Quality Mode) |
|
| Technology | Photogrammetry | |
| Supported body shape range | Recommended Scanning Dimensions: Diameter ≤ 35.43 inches (900 mm),Height ≤ 78.74 inches (2,000 mm) 〈for a 98.43 inches (2,500 mm) scanner diameter〉 | |
| Recommended network environment |
Internet connection required Dedicated LAN port for scanner connection Use the included dedicated Wi-Fi router to connect the scanner and PC Operates on the 5GHz band |
|
| Photographic speed | Within 0.5 seconds (using projector) | |
| 3D data generation rate |
Preview Mode ≈ 3 minutes Normal Mode ≈ 5 minutes Depends on PC specifications. Tested environment: Core i9-13900KF, 32GB RAM, GeForce RTX 4070 (12GB). |
|
| Installation environment |
Ambient illumination below 350 Lux (avoid strong light sources such as sunlight or intense artificial light). *Do not use in completely dark environments. *Always perform a test scan before use to ensure proper projection of patterns. |
|
| Software/Compatibility | Included Software |
Fac Trans Full Body App *The system uses Reality Capture. Account with EPIC GAMES not included. User must first obtain an account with EPIC GAMES. *Depending on your annual revenue, a paid subscription may be required. |
| Viewer | iBODY App (Planned) | |
| Recommended Specs |
OS: Windows 10 (64-bit) or later CPU: Intel Core i7 (8th Gen or later) or AMD Ryzen 7 or higher Memory: 32GB or more GPU: NVIDIA GeForce GTX 1080 / RTX 2060 or higher Storage: At least 500GB of free space (NVMe SSD recommended) |
|
| Supported OS | Windows 10 or later | |
| Supported Data Format | obj, ply, stl, fbx, 3mf, glb, etc. | |
| Maintenance/Warranty | Maintenance Requirements | Recalibration is necessary after changing camera positions or relocating the scanner (takes approximately 5 minutes). |
| Warranty Information | One year warranty after installation (consumables or customer-induced malfunctions or problems not included). | |
| Other | Pricing | Please contact us for details |
| Frame design and construction | special order |
